TTS BLUETOOTH MASTERTUNE SYSTEM FOR V-TWIN

The TTS Bluetooth MasterTune System is designed specifically to tune Delphi-equipped Harley-Davidson® motorcycles and includes four powerful Windows®-based programs.

Providing a 2-way communication between the bike’s ECM and a Windows based laptop/PC.

The interface also provides stand-alone data logging for diagnostic and calibration support.

The MasterTune software package can be downloaded for free at MasterTune.net/GettingStarted.

MasterTune: An ECM calibration development tool designed specifically for use on all Delphi-equipped Harley Davidson motorcycles from `12-22:

MasterTune licensing is associated with the programming interface. Can be licensed to program either one or two vehicles

Communications interface will “lock” to the vehicle the first time it is used for programming

Choose from a wide selection of base maps

Save and Restore current calibration (factory or other)

Modify many critical ECM tables and constants

Preset limits to prevent adjusting values beyond reasonable settings.

Stores original and the last table saved edits so tuner can return to previous configuration

Graph tables in 2D or 3D

Quickly compare changes in tables

Print table graphs and table values

Supports tuning using wideband O2 sensors

Correct speedometer calibration

Change primary ratio

Calibration adjustments:

Spark advance, front and rear

Knock control

Volumetric efficiency, front and rear

Rev limit

AE/DE fueling

EITMS settings

Idle speed

Start/Warmup fueling

Primary gearing changes

Fuel injector size

Engine Displacement

AFR/Lambda target

DataMaster: Display and record all your bike’s data as well as various calculated channels. This data can be viewed in real time, recorded, and played back. It can also graph in 2D or 3D lines:

Records vehicle engine data while riding or stationary

Retrieve, Check and Clear diagnostic codes.

Stores historic and current DTC’s

Playback of recorded data allowing viewing of key engine operating parameters

Clear DTC’s once repair is completed

Utilize VTune Histogram for tuning development

View real time engine parameters

Playback recorded data

Analyze Camshaft settings

Analyze IAC warmup settings

Simulate dyno and ¼ mile results

VTune: Works with all Delphi-equipped Harley Davidson motorcycles that are equipped with O2 sensors. VTune works by combining your current calibration with recorded data from DataMaster or Flight Recorder and creating a new optimized calibration:

One click tuning

Calibrating VE tables

Calibrating spark tables

Calibrating EGR correction tables

Verifying injector sizing

Flight Recorder: Allows for on-vehicle data recording with now attached PC.

The Flight Recorder is set up using an easy-to-follow wizard while the communications interface is attached to a computer.

After setup is complete you can collect up to 10 hours of data. After uploading data into DataMaster for playback and analysis and used with VTune for automatic tuning:

On vehicle data recording without attached computer

Record as much as 10 hours of data

Select from several DataMaster-compatible data streams (including VTune data)

Configurable RPM at which to start recording

Automatically start and stop recordings

All TTS MasterTune software is compatible with 32- and 64- bit versions of Windows 7 and newer

Bluetooth connection. No cables required to connect to computer

Made in USA

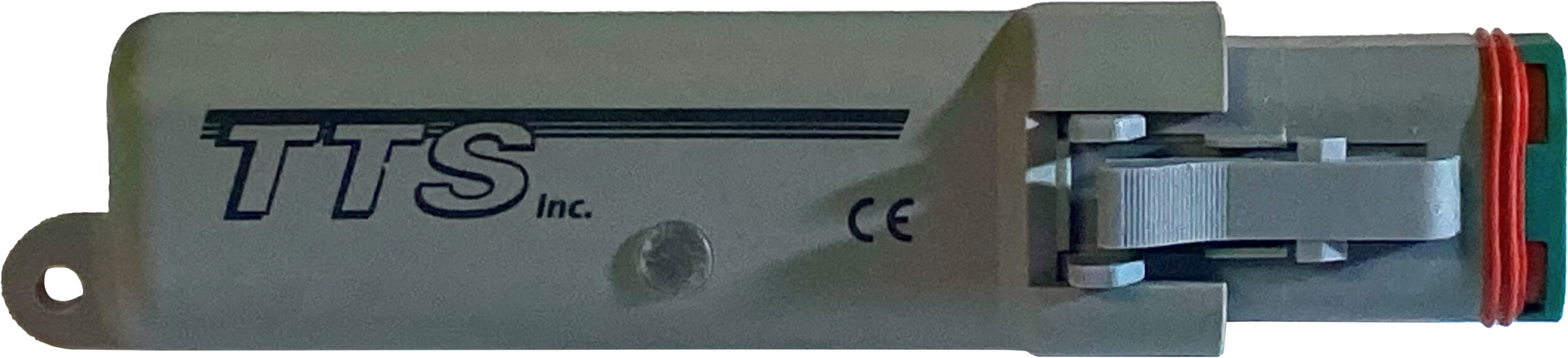

MasterTune BlueTooth Communications Interface

Interface marries to the ECM during the first ECM flash. Further calibration development can only be performed on that ECM

Vehicle diagnostics and data logging only, can be used on any compatible vehicle, even if already married to an ECM

MasterTune interface communicated to the PC via a wireless Bluetooth connection.

Includes support loop to attach the interface to the bike via a wire tie
